FALLING DART IMPACT TESTER STAIR-CASE Method ASTM D1709

Name: FALLING DART IMPACT TESTER STAIRCASE Method ASTM D1709
Brand: Cell Instruments
Price: 1 USD

China FALLING DART IMPACT TESTER STAIR-CASE Method ASTM D1709 wholesale

Brand Name : Cell Instruments

Model Number : FDT-01

Place of Origin : China

MOQ : 1 SET

Payment Terms : TT, LC

Supply Ability : At Stock

Delivery Time : 3~5 days

Packaging Details : Plywood Carton

Power : AC110~220V,50/60Hz

Usage : Impact Testing Machine

Product name : impact test machine

Warranty : 12 Months

Display : Touch screen display

Standard : ASTM D1709, ISO 7765, JIS K7124-1

Application : Analysis and analysis of various kinds of materials

Certification : CE

Price : Get An Offer

Contact Now

FALLING DART IMPACT TESTER STAIR-CASE Method ASTM D1709 measures the energy that causes plastic film and sheet to fail under specified conditions of impact of a free falling dart.

The impact energy is expressed in terms of the weight/mass of the missile falling from a specified height which would result in 50% failure of specimens tested.

Free-Falling Dart Method Impact Tester gives a quantified analysis of sample quality, uniformity, thickness and strength.

FALLING DART IMPACT TESTER STAIR-CASE Method ASTM D1709 Features

PLC control and touch screen operation
Two tests methods of A and B(B optional)
Test results g and J display
Electromagnetic suspension and automatic falling
Sample pneumatic clamping
Observation light
Manual and foot switch
Micro-printer for data export
Professional software (optional)

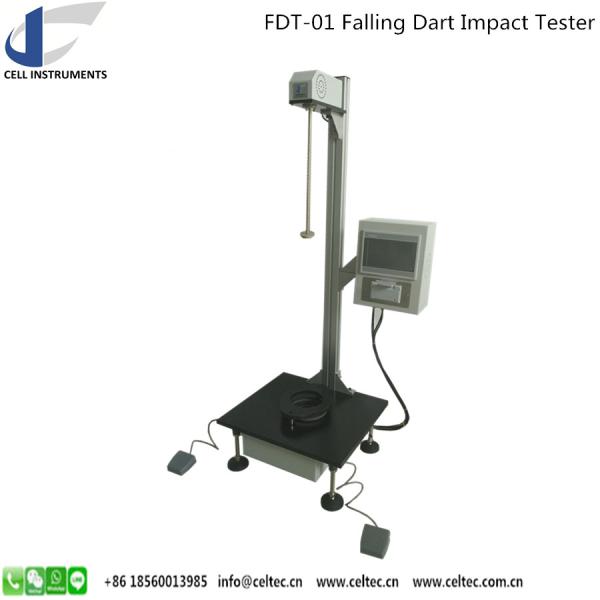

FALLING DART IMPACT TESTER STAIR-CASE Method ASTM D1709

FALLING DART IMPACT TESTER STAIR-CASE Method ASTM D1709 Technical Data

Test Method	Method A or Method B(optional)
Test Range	Method A: 50~2000g Method B: 300~2000g
Dart Diameter	Method A: 38±1mm Method B: 50±1mm
Impact Height	660mm/1500mm
Accuracy	0.1g (0.1J)
Specimen Clamp	Pneumatic Clamp
Gas Supply	0.6 MPa
Gas Port Size	Φ8 mm PU Tubing
Specimen Size	> 150 mm x 150 mm
Power Supply	AC 110~220V 50Hz

FALLING DART IMPACT TESTER STAIR-CASE Method ASTM D1709

Free-Falling Dart Method Impact Tester Standards

ASTM D1709, ISO 7765, JIS K7124-1, GB/T 9639.1-2008
