Automatic Free Falling Impact Tester Use Ball Carton Packaging Impact Resistance Testing Instrument

Name: Automatic Free Falling Impact Tester Use Ball Carton Packaging Impact Resistance Testing Instrument
Brand: Cell Instruments
Price: 1 USD

China Automatic Free Falling Impact Tester Use Ball Carton Packaging Impact Resistance Testing Instrument wholesale

Brand Name : Cell Instruments

Model Number : FBT-01

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : GET AN OFFER

Payment Terms : L/C, T/T

Supply Ability : 100 Sets/Week

Delivery Time : 3 days

Packaging Details : Plywood Carton

Impact Height : 300mm-600mm (can be extended)

Ball Diameters(mm) : 23, 25, 28.6, 38.1, 50.8(one equipped)

Accuracy : 0.1g (0.1J)

Specimen Clamp : Pneumatic Clamp

Gas Supply : 0.6 MPa Φ8 mm PU Pipe

Specimen Size : > 150 mm x 150 mm

Power Supply : AC 110~220V 50Hz

Contact Now

Automatic Free Falling Impact Tester Use Ball Carton Packaging Impact Resistance Testing Instrument

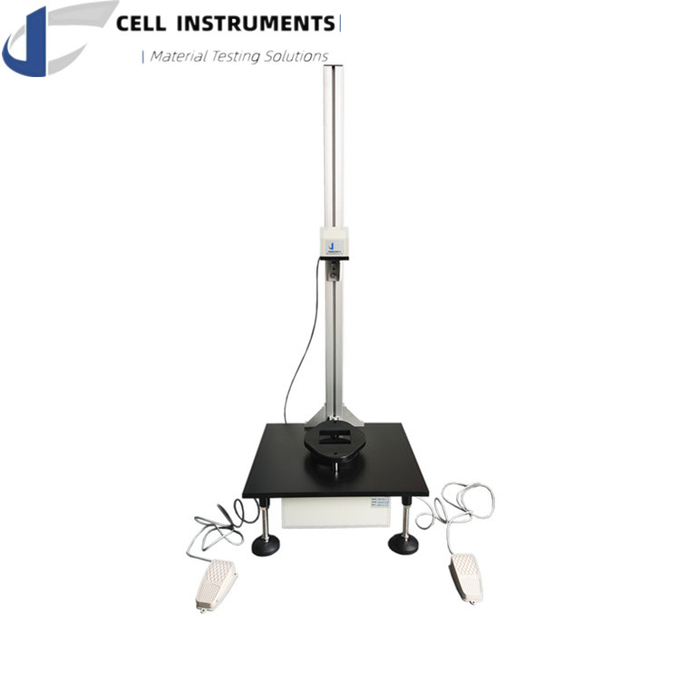

Introduction to the FBT-01 Falling Ball Impact Tester

The FBT-01 Falling Ball Impact Tester by Cell Instruments is an advanced testing solution designed for evaluating the impact resistance and puncture resistance of materials, with a focus on films and plastic sheets. As a pivotal instrument in quality control and research and development, this Falling Ball Impact Tester ensures precise and reliable assessments of a material's durability against external forces. Ideal for various industries, including packaging, food, medicine, and textiles, the FBT-01 plays a crucial role in enhancing product quality and performance.

Technical Features of the FBT-01 Falling Ball Impact Tester

The FBT-01 Falling Ball Impact Tester is equipped with a suite of advanced features that ensure accurate and efficient impact testing:

Precision PLC Control and Touch Screen Interface: The system integrates industrial-grade PLC control for stability and a user-friendly HMI touch screen for seamless operation.
Adjustable Impact Height and Ball Options: The impact height ranges from 300mm to 600mm, allowing for simulation of various impact scenarios. The tester supports multiple ball diameters (23mm, 25mm, 28.6mm, 38.1mm, and 50.8mm), enabling customization based on specific testing needs.
Electromagnetic Suspension for Ball Release: This feature ensures consistent and controlled release of the steel ball, critical for accurate testing conditions.
Pneumatic Sample Clamping: The specimen clamping mechanism utilizes pneumatic technology for secure and stable sample positioning.
Manual and Foot Switch Operation: The FBT-01 offers both manual and foot switch operation options, providing flexibility in testing procedures.
Dot Matrix Micro-Printer: This feature facilitates real-time documentation of test results, improving traceability and record-keeping.
Advanced Professional Software (Optional): Enhance the FBT-01 with optional professional software for comprehensive analysis and reporting.

Importance of the FBT-01 Falling Ball Impact Tester

The FBT-01 Falling Ball Impact Tester addresses the critical need for assessing the impact and puncture resistance of various materials. Here’s why it’s indispensable:

Quality Control: Ensures consistent product quality by assessing material resistance to impact and puncture.
Research and Development: Supports the development of more durable materials through precise impact testing.
Compliance: Helps meet industry standards and regulations by providing accurate impact resistance data.
Customization: Offers flexible testing options with adjustable impact height and different steel ball sizes.
Efficiency: Features advanced controls for quick and accurate testing results.

Purpose of the FBT-01 Falling Ball Impact Tester

The primary purpose of the FBT-01 Falling Ball Impact Tester is to evaluate the impact and puncture resistance of materials like films, plastic sheets, plates, composites, foils, and paper with thicknesses under 2mm. By applying a controlled impact force from a falling steel ball, the tester assesses the material’s ability to withstand external forces, preventing issues such as rupture, cracking, or deformation.

Applications of the FBT-01 Falling Ball Impact Tester

The FBT-01 Falling Ball Impact Tester is widely applicable across various industries:

Plastics Industry: Evaluates impact resistance of plastic sheets and films.
Packaging Industry: Tests the durability of packaging materials.
Textile Industry: Assesses the impact resistance of textile materials.
Food Industry: Ensures packaging integrity for food products.
Pharmaceutical Industry: Tests the impact resistance of pharmaceutical packaging.
Printing Industry: Evaluates durability of printed materials.
Adhesives Industry: Assesses the impact resistance of adhesive materials.

This versatile instrument is crucial for research facilities, enterprises, colleges, universities, and official laboratories where accurate material testing is essential.

Specifications of the FBT-01 Falling Ball Impact Tester

Impact Height: 300mm-600mm (extendable)
Ball Diameters: 23mm, 25mm, 28.6mm, 38.1mm, 50.8mm (one included)
Accuracy: 0.1g (0.1J)
Specimen Clamp: Pneumatic Clamp
Gas Supply: 0.6 MPa Φ8 mm PU Pipe
Specimen Size: > 150 mm x 150 mm
Power Supply: AC 110~220V 50Hz

The FBT-01 Falling Ball Impact Tester from Cell Instruments is a comprehensive tool designed to evaluate the impact resistance of materials with precision and ease. Its advanced features and flexible testing options make it an essential asset for enhancing product durability and quality across various industries.
