Falling ball impact tester

Name: Falling ball impact tester
Brand: Cell Instruments
Price: 1 USD

China Falling ball impact tester wholesale

Place of Origin : China

Brand Name : Cell Instruments

Model Number : FBT-01

MOQ : 1 SET

Price : Get An Offer

Packaging Details : Plywood Carton

Delivery Time : 3~5 days

Payment Terms : TT, LC

Certification : CE

Power : Electronic

Usage : Impact Testing Machine

Supply Ability : At Stock

Contact Now

Falling ball impact tester measures the resistance performance of plates, sheets, and composites, films foils, paper etc. with less than 2mm thickness. By impact test, the material ability to resist external destruction can be indicated.

Falling ball impact tester Technical Features

1. PLC control and touch screen operation

2. Impact height adjustable, different balls available

3. Test results multi-units display

4. Electromagnetic suspension and automatic release

5. Sample pneumatic clamping

6. Manual and foot switch

7. Built-in observation light for sample status easy judgment

8. Micro-printer for data export

9. Professional software(optional)

Falling ball impact tester Technical Data

Impact Height 300mm-600mm (customization available)

Accuracy 0.1g (0.1J)

Steel Ball Diameter 23mm, 25mm, 28.6mm, 38.1mm, 50.8mm

Specimen Clamp Pneumatic Clamp

Gas Supply 0.6 MPa

Gas Port Size Φ8 mm PU Tubing

Specimen Size > 150 mm x 150 mm

Power Supply AC 220V 50Hz

Dimension 480 mm (L) × 470 mm (W) × 1170 mm (H)

Net Weight 70 kg

Standards

YBB00202005, YBB00212005, YBB00222005, YBB00232005, GB/T15267

Falling ball impact tester

Cell Instruments is committed to development of material testing instruments for plastic, paper, bottle, box, containers, etc., PLC program and machinery customization. Please contact +86 531 88977152 (mail: info#celtec.cn Skype: smrelin ) for more information. Let us be a cell of your quality.

Falling ball impact tester

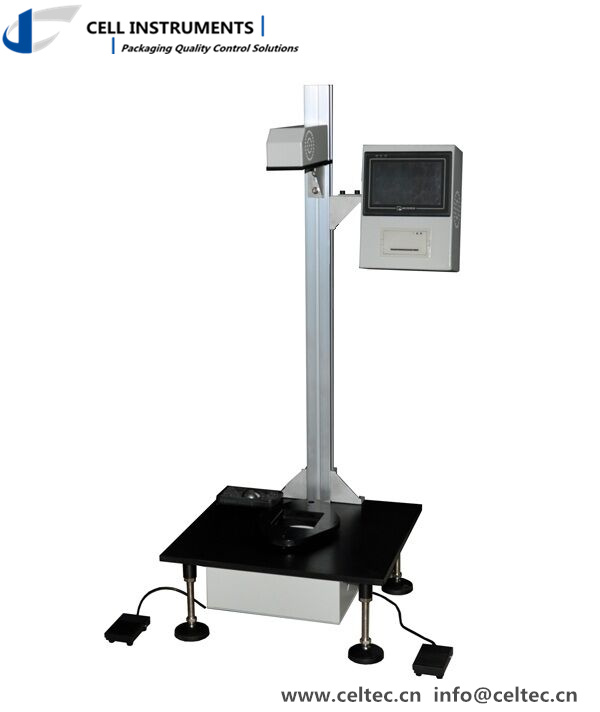

Falling ball impact tester Images
